JIUYI 2000kw/10kv Split Case Fire Pump Set

Product Overview

Standard:
UL Flow：50-3000 GPM Head： 5-20 Bar
NON-UL Flow：30-9000GPM Head：3-20Bar

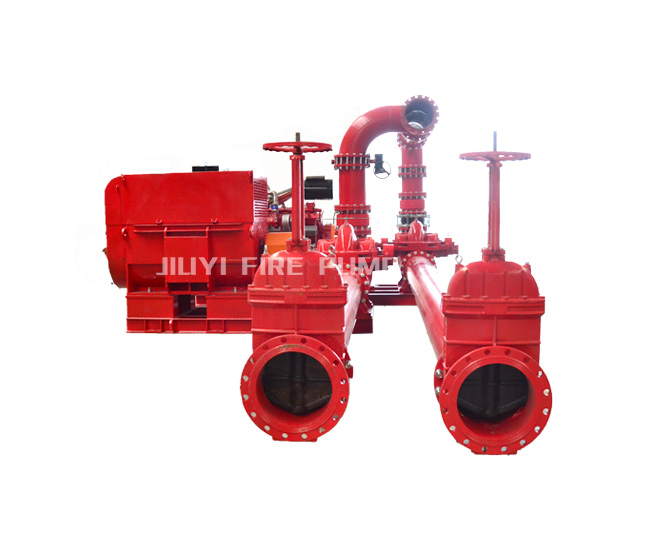

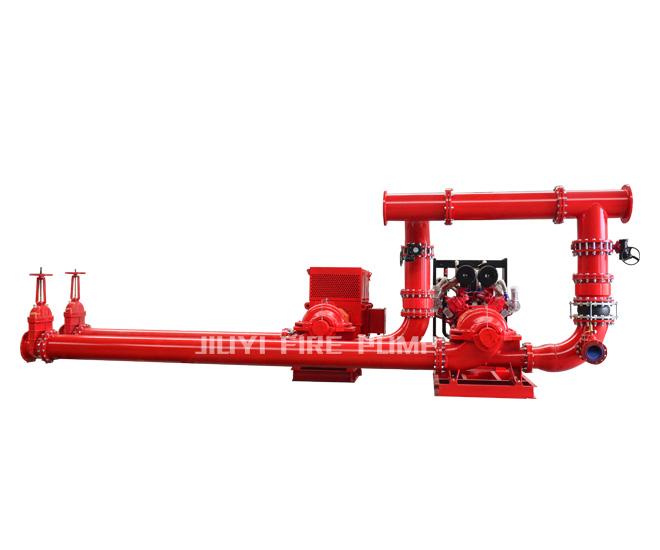

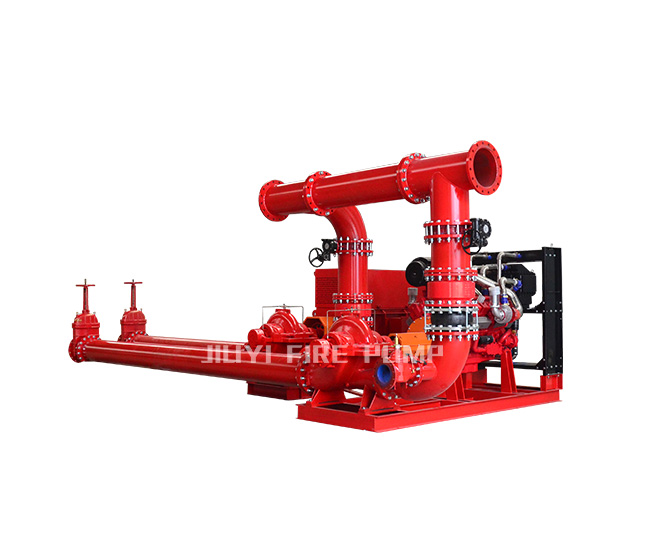

2000kw/10kv Split Case Fire Pump Set

1. Electric pump, can use OTS pump, material can be cast iron, stainless steel, and bronze impeller.
Series OTS pumps are single stage, double suction with horizontally spit casings. They are suitable pumping unsettled water,clean water.non-drinkable or hydrocarbon at a temperature not exceeded 105℃. Series OTS(L) pumps are available for capacities 0f68-18000m3/hr and heads of 70-200m.
They are adoptable in water works, irrigation and drainage pumping stations,firefighting systems, marine applications as well as general applications in refineries,etc.

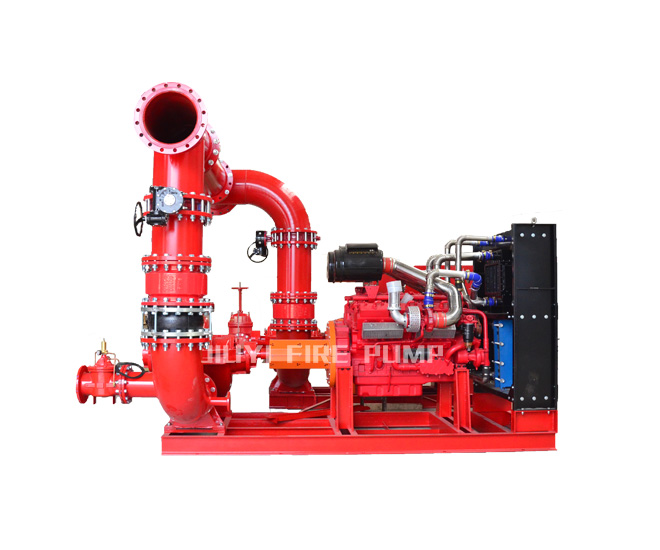

2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan, control box
Diesel engine pump also can use end suction, split case, multistage pump can according to the flowrate, head .
Different Diesel Model use different tank capacity.
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing :cast iron ,shaft and impeller SS304
4.Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
The control system has current, voltage, power display, and the operating status display of fire pump, diesel pump and steady pressure pump, diesel engine voltage, oil pressure, speed, running time display, manual pump
control and automatic remote control

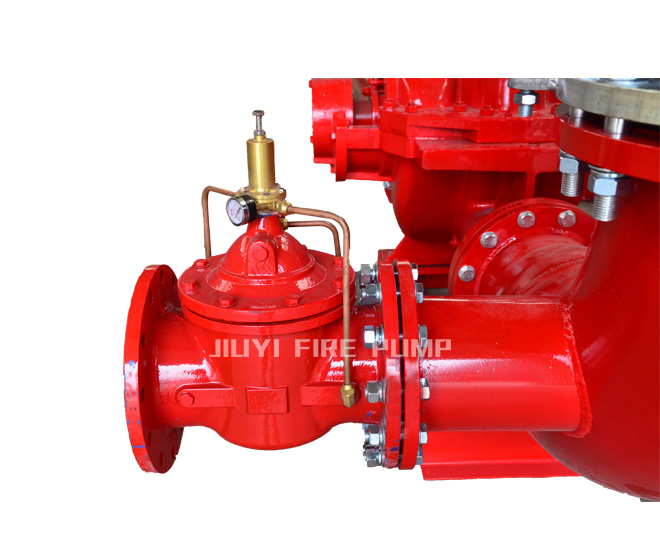

5.Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa,1.0mpa, 1.6mpa,Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge,Flexible Joints and Flanges, Common Base plant

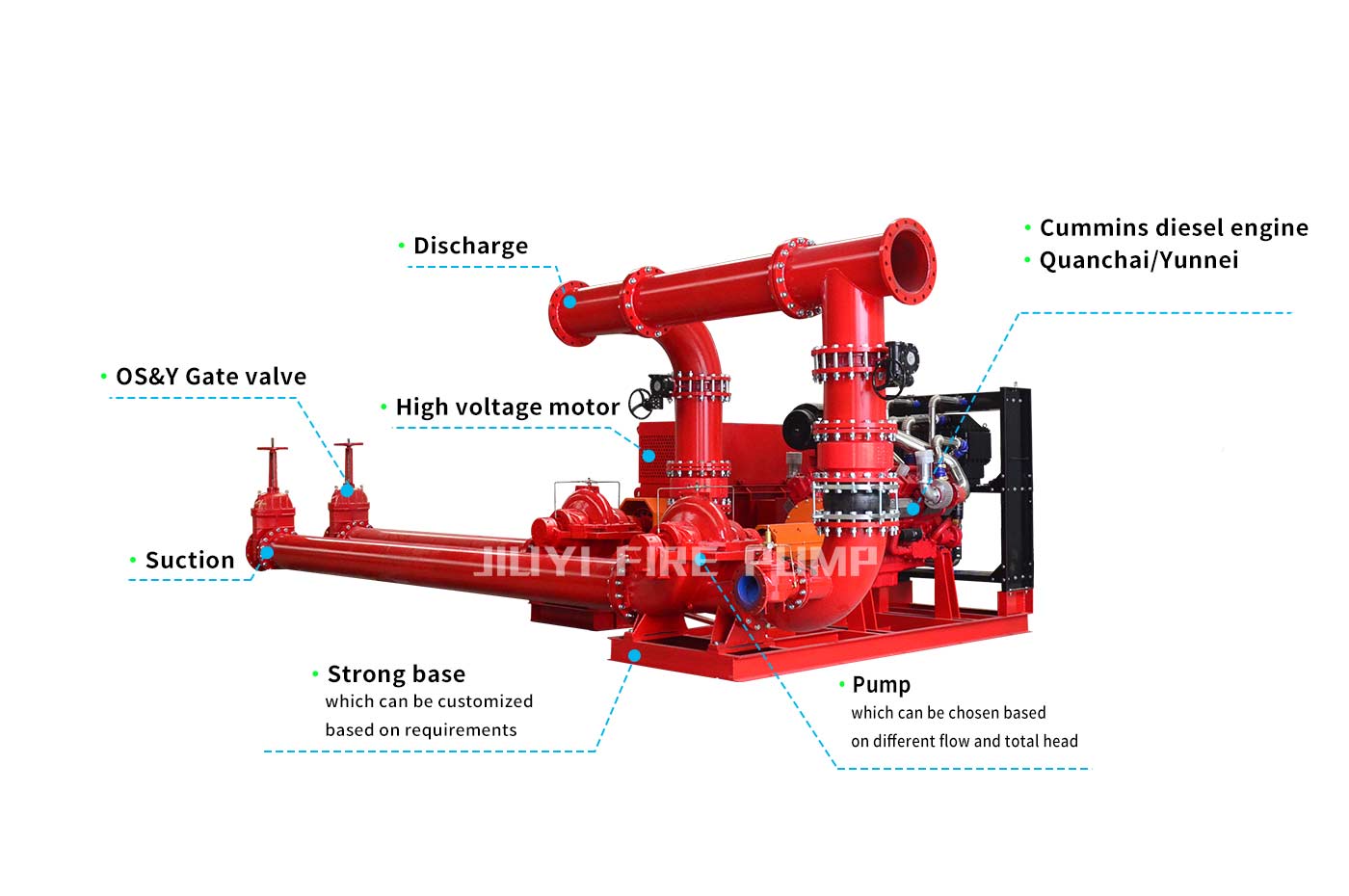

Structure

Operation: End Suction Pump, Split Case Pump,Diesel Engine ,High Pressure Motor(2000kw/10kv),Inlet&Outlet pipe
Capacity:100, 150,200,300,400,500,750, 1000...GPM with pressure 4, 5, 6, 8, 10...Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

Let's Talk.

Gallary

Application

Oil and Gas

Oil and gas are flammable substances, so fire safety is paramount. UL listed fire pump set is a high-standard fire pump suitable for scenarios with high fire ratings.

Industrial Facility

In the complex and high-risk industrial environment, efficient fire protection systems are essential. The UL Listed Fire Pump Set provides reliable fire protection, ensuring safety and stability in production environments.

Commercial buildings

In commercial buildings, protecting assets, employees, and visitors from fire risks is paramount. A reliable UL Listed Fire Pump Set ensures swift and effective response in emergencies, safeguarding both lives and valuable properties, while also minimizing downtime and potential financial losses.

Residential

In residential , the protection against fire hazards is paramount, as it safeguards both lives and property. With a dependable UL Listed Fire Pump Set, the safety and well-being of your loved ones and your assets are prioritized, ensuring peace of mind in the face of potential emergencies.

public spaces

In public spaces, the safety of individuals is of utmost importance. With this reliable system in place, public venues can uphold safety standards, protect lives, and maintain a secure environment for all occupants.

Related Products

JIUYI Outdoor Type EDJ Fire Pump Set

The outdoor fire pump set can be customized according to customer needs, and can include electric pumps, diesel engine pumps, and jockey pumps, with excellent appearance and easy installation. In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Contact Now

JIUYI EDJ Fire Pump Set

An EDJ fire pump set typically refers to a system used in fire protection and suppression applications.This system combines three different pumps to ensure a reliable and efficient water supply for fire sprinkler systems.National Fire Protection Association (NFPA).

Contact Now

JIUYI 750GPM 10Bar Split Case DJ Fire Pump Set

The Split Case Fire Pump Set is a highly efficient and reliable fire pump system, with its performance advantages primarily demonstrated in its split case technology. Compared to other water pumps, it boasts superior resistance to clogging, effectively handling solid particles within the pump body, thus enhancing stability and durability. Its design facilitates easier maintenance, significantly reducing downtime and ensuring continuous water supply capability. Moreover, the split case structure enables quicker startup, allowing for swift response to emergency fire situations, thus providing reliable support for firefighting efforts.

Contact Now

JIUYI CDL Type EDJ Fire Pump Set

An CDL Type EDJ Fire Pump Set typically refers to a system used in fire protection and suppression applications.This system combines three different pumps to ensure a reliable and efficient water supply for fire sprinkler systems.

Contact Now

JIUYI Fire Pump Control Panel

Jiuyi Fire Pump Control Panel is an efficient, safe and reliable Fire Pump Control Panel designed for a variety of Fire systems to ensure rapid response and stable operation in an emergency. Fire Pump Control Panel series is designed to provide high-performance and reliable control solutions for fire pumps. Our product range includes various types to meet different application needs, such as LCD Diesel Engine Control Cabinets and Dual Power Control Cabinets.

Contact Now

JIUYI EEJ Fire Pump set

The EEJ Fire Pump System includes two electric pumps and a jockey pump.With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Contact Now

JIUYI 1000GPM 14Bar Split Case EDJ Fire Pump Set

Ensure superior fire protection with Jiuyi's 1000GPM 14Bar EDJ Fire Pump Set. Designed for industrial and commercial applications, this high-performance fire pump set delivers consistent water flow and pressure, meeting the highest safety standards UL&NFPA20. Featuring advanced control systems and durable materials, it guarantees reliability and easy maintenance. Choose Jiuyi for your fire safety needs. Contact us to learn more.

Contact Now

JIUYI UL Listed Fire Pump Set

The UL Listed fire pump set is made based on UL 448 standards. The Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps. In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Contact Now

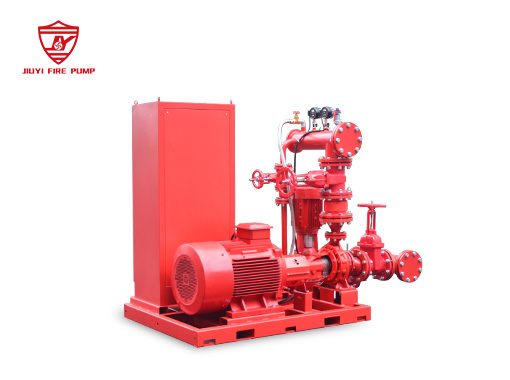

JIUYI EJ Fire Pump Set
