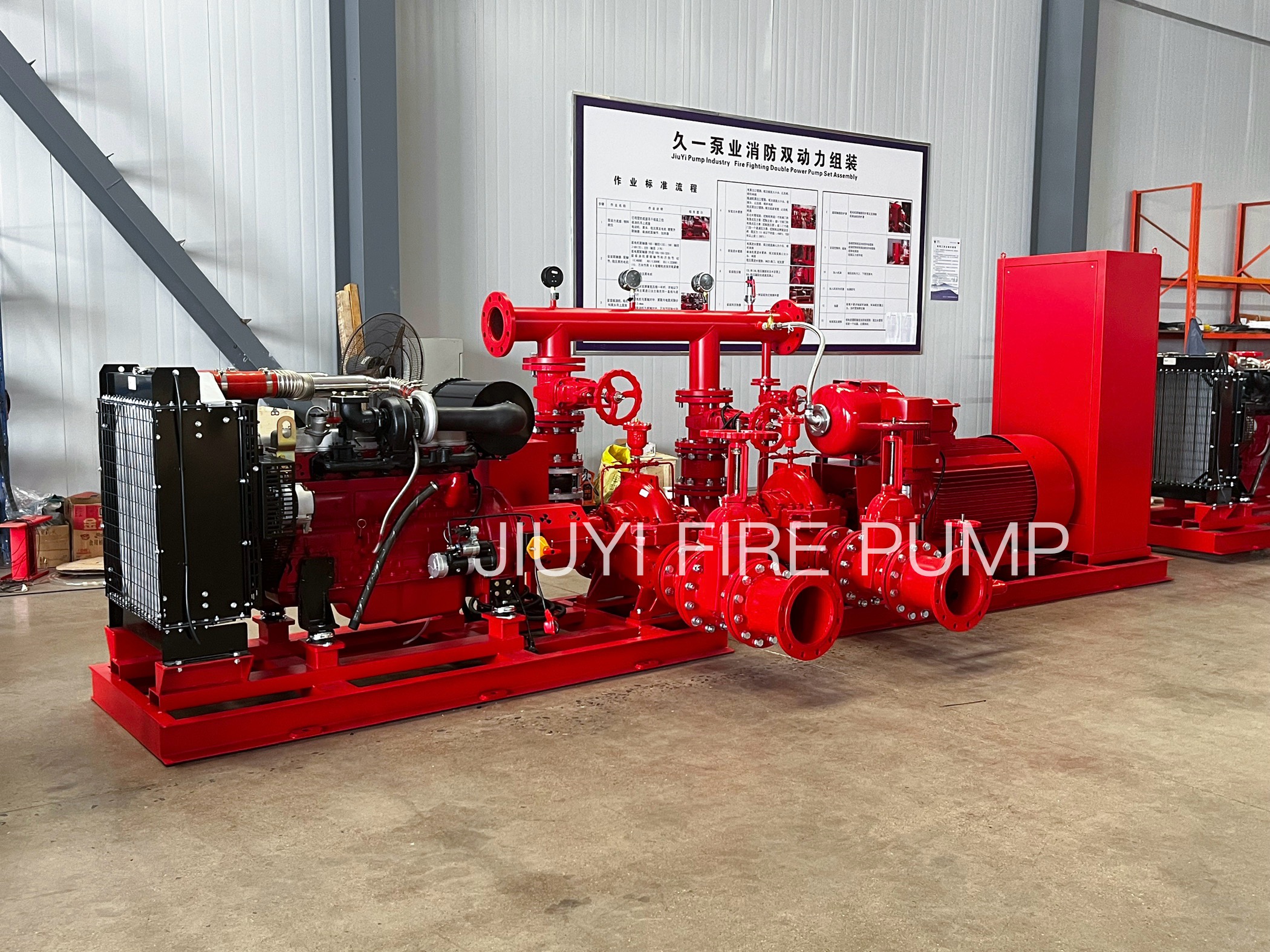

JIUYI 1000GPM 14Bar Split Case EDJ Fire Pump Set

Product Overview

Standard:
UL Flow：50-3000 GPM Head： 5-20 Bar
NON-UL Flow：30-9000GPM Head：3-20Bar

Split Case EDJ Fire Pump Packages
1. Electric pump, can use OTS pump, material can be cast iron, stainless steel, and bronze impeller.
Series OTS pumps are single stage, double suction with horizontally spit casings. They are suitable pumping unsettled water,clean water.non-drinkable or hydrocarbon at a temperature not exceeded 105℃. Series OTS(L) pumps are available for capacities 0f68-18000m3/hr and heads of 70-200m.
They are adoptable in water works, irrigation and drainage pumping stations,firefighting systems, marine applications as well as general applications in refineries,etc.
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank,fan, control box
Diesel engine pump also can use end suction, split case, multistage pump can according to the flowrate, head .
Different Diesel Model use different tank capacity.
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing :cast iron ,shaft and impeller SS304
4.Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection.
The control system has current, voltage, power display, and the operating status display of fire pump, diesel pump and steady pressure pump, diesel engine voltage, oil pressure, speed, running time display, manual pump
control and automatic remote control
5.Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa,1.0mpa, 1.6mpa,Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge,Flexible Joints and Flanges, Common Base plant

Structure

Operation: End Suction Pump, Split Case Pump, Vertical Inline Pump and Vertical Turbine Pump.
Capacity:100, 150,200,300,400,500,750, 1000...GPM with pressure 4, 5, 6, 8, 10...Bar.
Pressure vessel 25, 50, 75, 100...liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

Let's Talk.

Gallary

Application

Oil and Gas

Oil and gas are flammable substances, so fire safety is paramount. UL listed fire pump set is a high-standard fire pump suitable for scenarios with high fire ratings.

Industrial Facility

In the complex and high-risk industrial environment, efficient fire protection systems are essential. The UL Listed Fire Pump Set provides reliable fire protection, ensuring safety and stability in production environments.

Commercial buildings

In commercial buildings, protecting assets, employees, and visitors from fire risks is paramount. A reliable UL Listed Fire Pump Set ensures swift and effective response in emergencies, safeguarding both lives and valuable properties, while also minimizing downtime and potential financial losses.

Residential

In residential , the protection against fire hazards is paramount, as it safeguards both lives and property. With a dependable UL Listed Fire Pump Set, the safety and well-being of your loved ones and your assets are prioritized, ensuring peace of mind in the face of potential emergencies.

public spaces

In public spaces, the safety of individuals is of utmost importance. With this reliable system in place, public venues can uphold safety standards, protect lives, and maintain a secure environment for all occupants.
