How to Install a Fire Pump System Step by Step

Introduction

• Importance of proper fire pump installation
• Ensuring compliance with NFPA standards

Step 1: Pre-Installation Planning

• Assess system requirements and building needs
• Review NFPA 20 and local fire safety codes

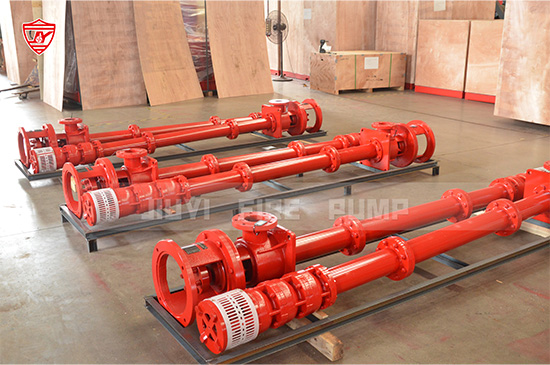

• Select the right type of fire pump (electric, diesel, or vertical turbine)

Step 2: Prepare the Site

• Choose a location for the fire pump room
• Ensure adequate space for operation, ventilation, and maintenance access
• Verify water supply availability (tank or municipal connection)

Step 3: Install the Fire Pump Components

• Base Plate Setup: Align and level the pump foundation
• Pump Installation: Place and secure the fire pump on the base
• Motor/Diesel Engine Setup: Install the motor or engine with proper alignment
• Piping: Connect suction and discharge piping following NFPA guidelines

Step 4: Install Auxiliary Equipment

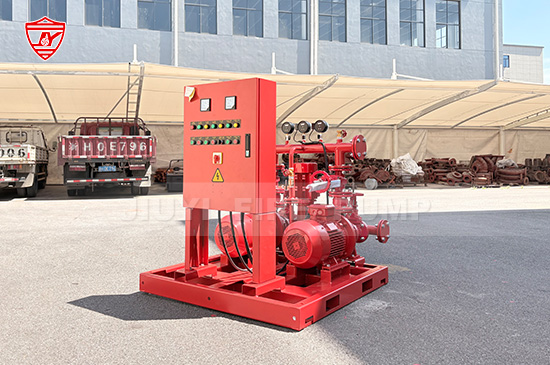

• Controllers: Set up fire pump controllers (electric or diesel)
• Jockey Pump: Install to maintain system pressure
• Valves: Add necessary check valves, isolation valves, and relief valves

Step 5: Electrical Connections and Controls

• Wire the pump motor/controller to the power source
• Install battery systems for diesel engines
• Verify emergency power supply if applicable

Step 6: Perform Alignment and Coupling

• Ensure precise alignment between the pump and motor/engine
• Use shims and laser alignment tools as needed

Step 7: Testing and Commissioning

• Conduct hydrostatic pressure testing
• Perform flow rate tests to verify system performance
• Inspect and test all safety features, including alarms and controls

Step 8: Final Inspection and Certification

• Verify compliance with NFPA 20 and local regulations
• Schedule inspections with fire safety authorities

Step 9: Ongoing Maintenance Recommendations

• Develop a maintenance schedule
• Perform regular tests to ensure long-term reliability
