In high-rise buildings, industrial facilities, and commercial buildings, fire pumping systems are a critical component of fire protection. These systems ensure that there is enough water pressure to extinguish a fire when standard water supply sources are insufficient. Next, let's take a closer look at how fire pump systems work.
Fire pumps are designed to boost water pressure and deliver water from municipal water lines, tanks, or reservoirs, to sprinkler systems and fire hydrants. This function ensures that water reaches all critical areas during an emergency. For example, in a high-rise office building, in the event of a fire, the normal municipal water supply water pressure may not be able to meet the demand for fire suppression on the upper floors. At this time, the fire pump is activated, the water pressure will be raised to a sufficient height, so that the sprinkler system can work normally, effectively inhibit the spread of fire.

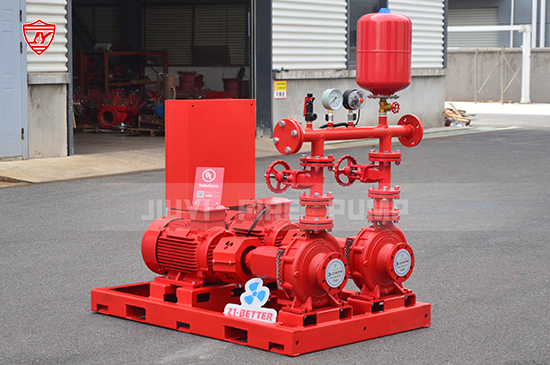

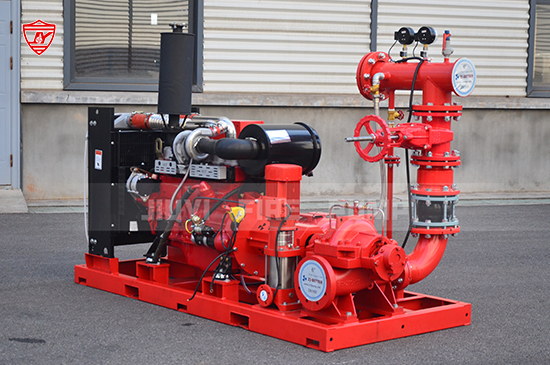

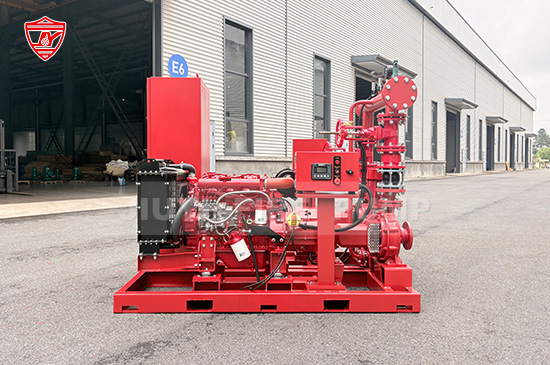

Fire pumps are divided into two types: electric and diesel-driven. Their main task is to transport water in the form of high pressure. Electric pumps are usually used in environments with a stable supply of normal electricity, and have the advantage of low running costs and relatively low noise. Diesel-driven pumps, on the other hand, play a key role in locations where the power supply may be interrupted, such as remote industrial plants or areas with frequent power outages. Diesel-driven pumps can be quickly activated in emergency situations to ensure a continuous supply of water for fire fighting. (ii) Pressure stabilizing pumps
The function of a pressure stabilizing pump is to maintain system pressure and prevent unnecessary start-up of the main fire pump. It continuously monitors the water pressure in the system, and when the water pressure drops slightly, the pressure stabilizing pump will start working to replenish the water pressure to the set range. In this way, only in the event of a real fire and a significant drop in water pressure, the main fire pump will start, avoiding frequent start-up of the main fire pump due to small fluctuations in water pressure, and extending the service life of the main fire pump.
The pump controller is the “brain” of the fire pump system, which automatically controls the operation of the system according to the pressure drop. When the system pressure is lower than the set threshold, the pump controller receives a signal and immediately starts the fire pump. At the same time, it also monitors the operating status of the fire pump, such as operating time, current, voltage and other parameters, and will issue a timely alarm in the event of an abnormality. Modern pump controller also has intelligent control logic, according to the actual situation to adjust the operating power of the fire pump, in order to achieve the best fire extinguishing effect.
Municipal water supply: municipal water supply is one of the common sources of water for fire fighting. Its advantage is that the water supply is stable and the water quantity is sufficient. However, in the event of a fire, there may be a drop in water pressure due to a large increase in water demand in the surrounding area. Water Storage Tank: A water storage tank is generally used to store water for firefighting purposes and can provide a source of water when municipal water supply is insufficient or interrupted. It is usually set on top of a building or other elevated location and utilizes gravity to assist in the supply of water. Reservoirs: Reservoirs may be used as a source of water for firefighting purposes at some large industrial facilities or in remote areas. Reservoirs have a huge volume of water and are capable of meeting the demands of prolonged and large-scale fire-fighting operations.
Pipes and valves are responsible for efficiently directing the flow of water. Different types of valves play different roles in the system. For example, check valves can prevent water backflow, to ensure that the water flow is always towards the fire fighting equipment flow; gate valve is used to control the pipeline on and off, to facilitate the maintenance and repair of the system; safety valves can be in the system pressure is too high when the automatic pressure relief, to protect the system safety. Through the rational design and installation of piping and valves, to ensure that the fire water quickly and accurately to the fire scene.
When the fire sprinkler or fire hydrant is started, the water pressure in the system will drop rapidly. This drop signal is captured by the pump controller, then trigger the fire pump start. The fire pump extracts water from the water supply source and delivers it in high pressure through the pipeline. Throughout the fire fighting process, the fire pump continues to run until the system pressure returns to normal or the fire is successfully extinguished. For example, in a shopping mall fire scene, when a certain area of the sprinkler head rupture due to the temperature and spray water, the system pressure drops instantly, the fire pump starts immediately, a large amount of water transported to the area, effectively controlling the fire for the evacuation of people and fire rescue to buy time.
Fire pump systems must strictly comply with the NFPA 20 standard. NFPA 20 provides comprehensive specifications for the installation, operation and maintenance of fire pump systems. In terms of installation, it specifies the location of fire pumps, piping connections and other specific requirements to ensure that the system can operate properly. In terms of operation, it specifies the starting and stopping process of fire pumps as well as emergency operation methods. For maintenance, regular inspections, testing and servicing are required to safeguard the reliability of the system during emergencies. Only in line with the NFPA 20 standard fire pump system, in order to play a proper role in the event of a fire.
Routine inspections, testing, and maintenance are critical to maintaining a fire pump system in optimal condition. Common maintenance items include checking the pump body for damage, valves for proper opening and closing, and piping for leaks. Maintenance intervals are generally based on the frequency of use and environmental conditions of the system, and usually include monthly visual inspections, quarterly comprehensive tests, and annual in-depth maintenance. Through regular maintenance, potential problems can be identified and resolved in time to prevent system failure in the event of a fire. For example, the pressure sensor of the pressure stabilizing pump is regularly checked to ensure that it can accurately monitor the system pressure, so as to avoid the main fire pump from starting incorrectly or failing to start due to sensor failure.
The operation of a fire pumping system involves the synergistic functioning of several components, from the pumps that raise the water pressure, to the pressure stabilizing pumps that maintain the pressure, to the pump controllers that automatically control the pumps, as well as the water supply source and piping valves. At the same time, compliance with NFPA 20 standards and regular maintenance are key to ensuring reliable system operation. Facility managers and fire safety professionals should place a high priority on understanding fire pumping systems in order to better safeguard fire safety and ensure that in the event of a fire, the fire pumping system is able to perform its intended role in protecting life and property.
